High accuracy monitoring functions by MITSUBISHI dedicated ASIC. Equipped with a full function of measuring, output and transmission. It supports the realization of measuring and monitoring systems that are user-friendly and easy-to-see. MODBUS® RTU (as standard) and CC-Link communication (except ME96SSEB-MB) functions to support open networks.

Electronic Multi-Measuring Instrument

The ME96SS measures and displays all important values of a low voltage/medium voltage power distribution system. By optional plug-in modules, remote I/O’s and open network communication can be added. The remote I/O will be used for monitoring the MCCB or ACB status or can be used for energy counters. It provides full integration in a CC-Link or Modbus network and allows therefore energy reduction and optimization controlled by a PLC.

  • Compact sizes according to DIN
  • Easy to read display and simple to learn operation
  • Flexible to use and modular expandable

High performance and crystal clear display

  • High accuracy monitoring functions by our dedicated ASIC: upper/lower limit monitoring up to 4 items, harmonics monitoring, measures import/export active energy
  • Easy to read display functions: 4 items displayable, wide viewing angle LCD
  • Wide range of output functions from measuring data to alarm: output function for 7 items, pulse width settable, pulse output at 2 points, analog output range settable
  • Communication functions to support open networks: MODBUS® communication, CC-Link communication
  • "High-tech, yet simple" operating functions: simple settings, simple operations

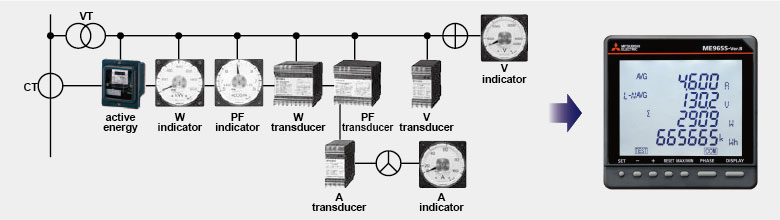

One device has multifunction

ME96SS series can replace several measuring devices with one device.

Compact size

Realized downsizing for ME96SSEB-MB.

Data backup

ME96SSHB/ME96SSRB are available with built-in logging function and an optional module (ME-0000BU-SS96,ME-0000BU25-SS96) which can retain data even when communication cannot be established.

Network

ME96SS has MODBUS® RTU(RS-485) communication function as standard. Also there are available optional modules usable CC-Link communication and MODBUS® TCP communication in an Ethernet network.

Checking Input Wiring Support Function

Incorrect wiring pattern display function.

Whether the voltage/current input wirings are correct or not is displayed. As for the incorrect wiring display pattern, see the instruction manual.
